DRDO Tests High-Altitude Platform at 21 km: India’s Stratospheric Surveillance Capability

Why in News?

• The Defence Research and Development Organisation (DRDO) has successfully conducted a flight trial of an indigenously developed High-Altitude Platform (HAPS). During the trial, the experimental platform reached an altitude of 21 km above mean sea level and remained at around 20 km for more than 30 minutes.
• The trial is significant because HAPS technology can provide persistent surveillance and communication capabilities from the stratosphere, potentially complementing conventional aircraft, satellites and unmanned aerial systems.

What is a High-Altitude Platform (HAPS)?

• A High-Altitude Platform (HAPS) is an aerial system designed to operate at very high altitudes, generally in the stratosphere, for extended periods. Unlike conventional aircraft that frequently return to the ground, HAPS is designed for long-endurance missions.

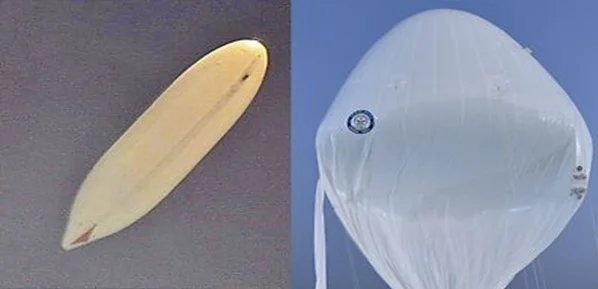

• The DRDO's experimental system is a lighter-than-air platform being developed as a long-endurance stratospheric aerial surveillance system. Its high operating altitude can provide a wide field of view for surveillance and monitoring.

DRDO’s Recent HAPS Trial

The HAPS platform was developed by the Aerial Delivery Research and Development Establishment (ADRDE), Agra, a DRDO laboratory.

During the flight trial:

• The platform reached a maximum altitude of 21 km.
• It maintained an altitude of around 20 km for more than 30 minutes.
• After completing the designated mission profile, it was commanded to descend.
• The platform was successfully recovered after the trial.
• Flight-performance data were subsequently analysed.
• Real-time video and vehicle parameters were transmitted to the Ground Control Station throughout the flight.

This demonstrated the platform's ability to maintain high-altitude operation while continuously transmitting information to the ground.

Key Technologies Used in the Platform

• The HAPS carried several instrumentation and control systems required for autonomous and controlled high-altitude operation.
• These included an Inertial Measurement Unit (IMU), Global Positioning System (GPS) receiver, onboard cameras and an altitude-control mechanism, along with other supporting subsystems.
• The combination of these systems enables the platform to determine its position, monitor its surroundings and maintain the required flight parameters.

Why is HAPS Important for India?

• HAPS can become an important component of India's future persistent surveillance architecture. Operating from the stratosphere allows such platforms to observe large areas while remaining above much of the weather and commercial air traffic.
• For a country with long land borders, difficult terrain and extensive maritime interests, persistent aerial surveillance can improve situational awareness and early warning.
• HAPS could potentially complement satellites, conventional aircraft, drones and other surveillance assets rather than replacing them.

Strategic Significance for Defence

• Persistent Border Surveillance: HAPS can potentially remain over an area for long periods and provide continuous surveillance. This could be particularly useful for monitoring mountainous and remote border regions.
• Wide-Area Situational Awareness: Its high operating altitude provides a broad line of sight, allowing surveillance of a large geographical area from a single platform.
• Complement to Satellites: Satellites provide strategic coverage but are constrained by orbital characteristics and revisit patterns. HAPS could provide more persistent, area-specific surveillance and operate closer to the region of interest.
• Communication and Networking: Future HAPS platforms could potentially serve as high-altitude communication nodes, helping provide connectivity over areas where conventional terrestrial infrastructure is difficult to establish.
• Indigenous Defence Capability: The successful trial strengthens India's efforts towards Aatmanirbhar Bharat in advanced aerospace and defence technologies and reduces dependence on foreign high-altitude surveillance systems.

HAPS vs Conventional UAVs and Satellites

Thus, HAPS occupies an important middle layer between conventional aerial systems and space-based assets.

Multi-Agency Coordination

• The flight trial was conducted in coordination with several organisations, including the Indian Air Force (IAF), Centre for Military Airworthiness and Certification (CEMILAC), Directorate General of Civil Aviation (DGCA), Airports Authority of India (AAI) and other civil authorities.
• Such coordination is important because high-altitude aerospace testing involves both military requirements and civil aviation airspace management.

Challenges Ahead

Despite the successful trial, developing an operational HAPS involves several technological challenges.

• Energy Management: Long-duration operation requires efficient power generation and storage systems.
• Stratospheric Environment: Very low temperatures, strong winds, atmospheric conditions and reduced air density create demanding engineering conditions.
• Payload Capacity: The platform must carry useful surveillance, communication and sensor payloads without compromising endurance.
• Navigation and Control: Maintaining a stable position at very high altitude for extended periods requires highly reliable navigation and control systems.
• Operational Endurance: The next stage will involve demonstrating substantially longer endurance and validating the platform under more demanding operational conditions.

Way Forward

India should focus on transitioning the experimental HAPS from a technology demonstrator towards an operational long-endurance platform.

Future development should prioritise:

• Longer-duration stratospheric flight.
• Advanced electro-optical and other surveillance payloads.
• Secure military communications.
• Improved autonomous navigation and altitude control.
• Higher payload capacity.
• Integration with India's broader ISR (Intelligence, Surveillance and Reconnaissance) architecture.
• Greater participation of Indian private industry and start-ups.
